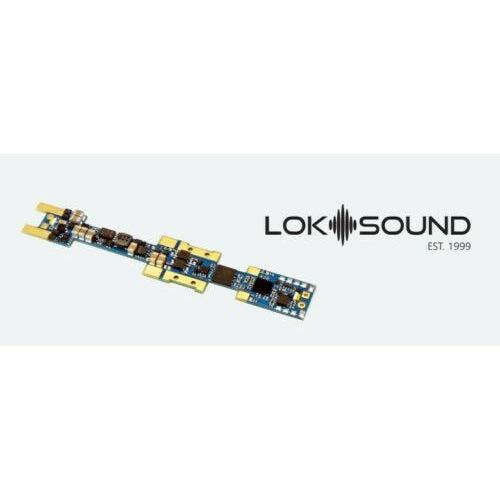

LokSound 5 Micro Direct NMRA DCC Sound Decoder - Kato USA Type
Decoder Specifications:
Size: 60.0 mm x 10.1 mm x 3.2 mm (2.36 in x 0.40 in x 0.13 in)
Interface: N Scale Drop-In
Motor Rating: 0.9 A Nominal
BEMF: Motor control with 50 kHz clock frequency
Functions: 7 amplified outputs for special functions
Sound:
32-bit processor
Digital class "D" amplifier with up to 13 W power
12 sound channels can be played simultaneously
Each channel in 16-bit resolution and 31250 kHz sample rate
Nominal Speaker Impedance: 4 - 32 Ohm
Protocol: DCC with RailComPlus
Additional Features:
Updatable with ESU-LokProgrammer
Two-stage heavy load simulation
3 new, individually adjustable brake controllers
Connection interface for RC servos and SUSI modules
Optional PowerPack storage capacitor connections
Includes pre soldered wires for a speaker, decoder also includes two seperate LED's.
